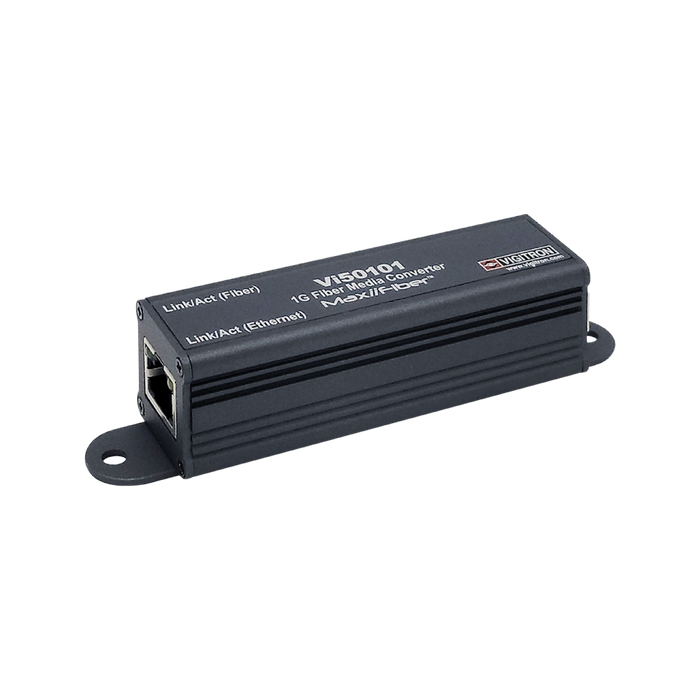

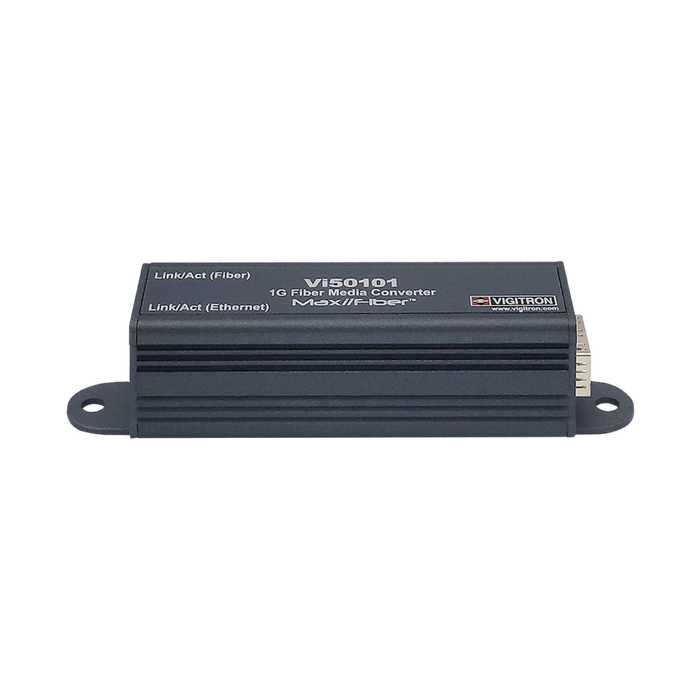

Vigitron Mini 1G Media Convertor -(VIG-VI50101)
he Vigitron Vi50101 Mini 1G Fiber Media Converter is a compact, PoE-powered networking device designed to seamlessly connect copper Ethernet networks to fiber optic infrastructure. Supporting 10/100/1000Base-T Ethernet with a Gigabit SFP fiber interface, it provides a reliable solution for extending network connectivity over long distances while maintaining high-speed data transmission. Its ultra-small form factor makes it ideal for installations where space is limited.
Designed for security, surveillance, and enterprise networking applications, the Vi50101 is compatible with a wide range of SFP modules, allowing installers to select the appropriate fiber type and transmission distance for each project. Powered directly via IEEE 802.3af/at PoE, it eliminates the need for a separate power supply, simplifying installation while reducing cabling requirements. Support for jumbo frames up to 9,000 bytes ensures efficient handling of high-bandwidth applications such as megapixel IP cameras and network storage.
Built with a rugged extruded aluminum housing, the Vi50101 is engineered for dependable operation in demanding environments. It offers flexible installation options, including inline, wall-mount, and DIN rail mounting, with adapters included. Operating reliably in temperatures from -10°C to +70°C, this compact media converter is an excellent choice for commercial buildings, industrial facilities, campuses, and long-distance CCTV network deployments.
Key Features
- Extends Ethernet and PoE transmission up to 900m (3,000 ft.)
- 16-port MaxiiCopper™ Ethernet extender for multiple network devices
- Requires a 72W PoE source or 12VDC external power supply
- Supports IEEE 802.3af, 802.3at, and 802.3bt PoE standards
- Plug-and-play installation with no IP configuration required
- Auto-selecting 10/100Mbps Ethernet speeds
- Full-duplex data transmission over extended distances
- Supports jumbo frames up to 9,600 bytes
- Compatible with IP cameras, access control, VoIP, wireless APs, and other PoE devices
- Ideal for long-distance CCTV, security, industrial, and enterprise networking applications
