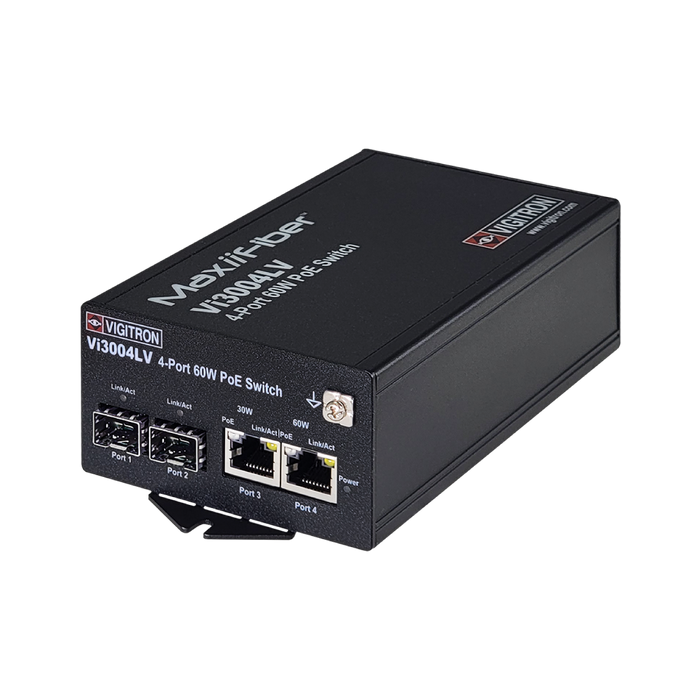

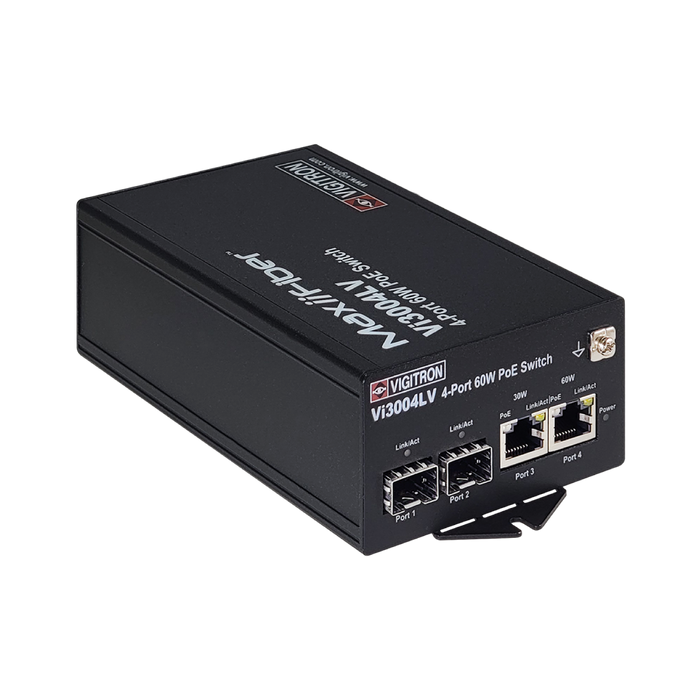

Vigitron 4-Port MaxiiNet 10/100/1G 24V DC/AC Input PoE Switch-(VIG-VI3004LV)
The Vigitron Vi3004LV MaxiiNet™ 4-Port Layer 2 PoE Switch is a compact networking solution designed for surveillance and security applications requiring reliable Gigabit Ethernet connectivity and flexible power options. Featuring Layer 2 switching with integrated fiber-to-copper media conversion, it enables seamless migration from analog CCTV systems to modern IP-based infrastructure while reducing installation costs.
Powered by either 24V AC or 24V DC, the Vi3004LV is ideal for upgrading existing security installations without replacing current power supplies. It supports two Gigabit SFP fiber ports and two auto-sensing 10/100/1000 Mbps RJ45 ports, allowing installers to combine fiber and copper connections within the same network. With support for IEEE 802.3af/at PoE and up to 60W output on Port 4, the switch can power high-performance IP cameras and other PoE-enabled devices across long distances.
Engineered for demanding environments, the Vi3004LV is MegaPixel Certified (MPC™) and tested to RFC 2544 network performance standards for dependable high-bandwidth transmission. Its non-blocking Layer 2 architecture, QoS support, jumbo frame compatibility, and rugged aluminum housing make it a reliable choice for parking facilities, perimeter security, campuses, and industrial surveillance deployments operating in temperatures from -30°C to +70°C.
Key Features
- 4-port Layer 2 Gigabit PoE switch with integrated media conversion
- Dual 24V AC/DC power input for flexible installations
- Two Gigabit SFP fiber ports and two 10/100/1000 Mbps RJ45 ports
- Supports IEEE 802.3af and IEEE 802.3at PoE standards
- Delivers up to 30W PoE on Port 3 and 60W PoE on Port 4
- Ideal for upgrading analog CCTV systems to IP surveillance
- MegaPixel Certified (MPC™) for high-performance IP camera compatibility
- Supports Jumbo Frames up to 10,000 bytes for efficient data transmission
- Rugged aluminum housing with operating temperatures from -30°C to +70°C
- Layer 2 switching with QoS, MAC learning, and non-blocking switch fabric for reliable network performance
